non-clapboard air filter

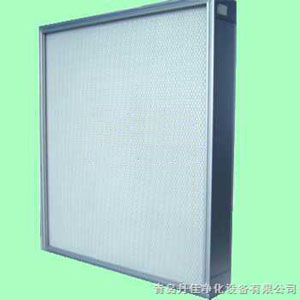

Non-clapboard type high efficiency air filter

  It separates the filter by the hot melt adhesive instead of aluminum foil with baffle filters Without the baffle,

 the non-clapboard type high efficiency air filter with 50mm thick can reach the performance of the 150mm

 thick partition filter. The air flow of the 90mm thick frame of HEPA can be 1.3 times larger than that of

clapboard type high efficiency air filter with 150mm thick the standard resistance type and 2 times larger than

that of SPAN, 150 mm thick standard resistance type in the case of the same filter area and filter efficiency. It

can meet today's air purifier on the stringent requirements of space and weight and energy consumption.

 Clapboard type high efficiency air filter

Partition filter media is made of be separated and folded wrinkled aluminum foil form specially automated

equipment .positive management of the production process and strict side try to ensure the quality of the

product is ensured by the positive management of the production process and strict test.

Air Filter is a kind of air filtration devices. It is generally used for cleaning dust in a clean shop, clean

 rooms, laboratories and clean rooms, or for protecting electro-mechanical communication equipment from

dust. The Air Filter models include the primary efficiency air filter, medium efficiency air filter, high

 efficiency air filter and sub-efficient filter and others with different standards and performance.

Primary efficiency air filter

It is usually made of man-made fiber filter material and its frame is made of sturdy, moisture-proof

cardboard. It will not be deformed, broken, twisted in the normal operating environment. In addition to

fixing filter material in the form of diagonal around the frame, filter material and frame are tightly bonded

to prevent form leaking air. Pleating filter can accumulate large amounts of dust and put the dust at the

bottom of it, then its sides can effectively filter other dust. Generally speaking, the deeper the pleating is,

the longer service life it has.

Characteristics of these products:

    Solid structure, stable effects, longer service life

    Solid, efficient and easy to handle

    Lower initial resistance

    Stable filtration efficiency

Using this filter does not need to change the design of the original air-conditioning box. It not only has

better efficiency than traditional planar filter, but also extends the life of back-efficiency filter. The primary

 air filters include: non-woven filter of the filter plate, all metal filter, washable filter, pleat filter and others
